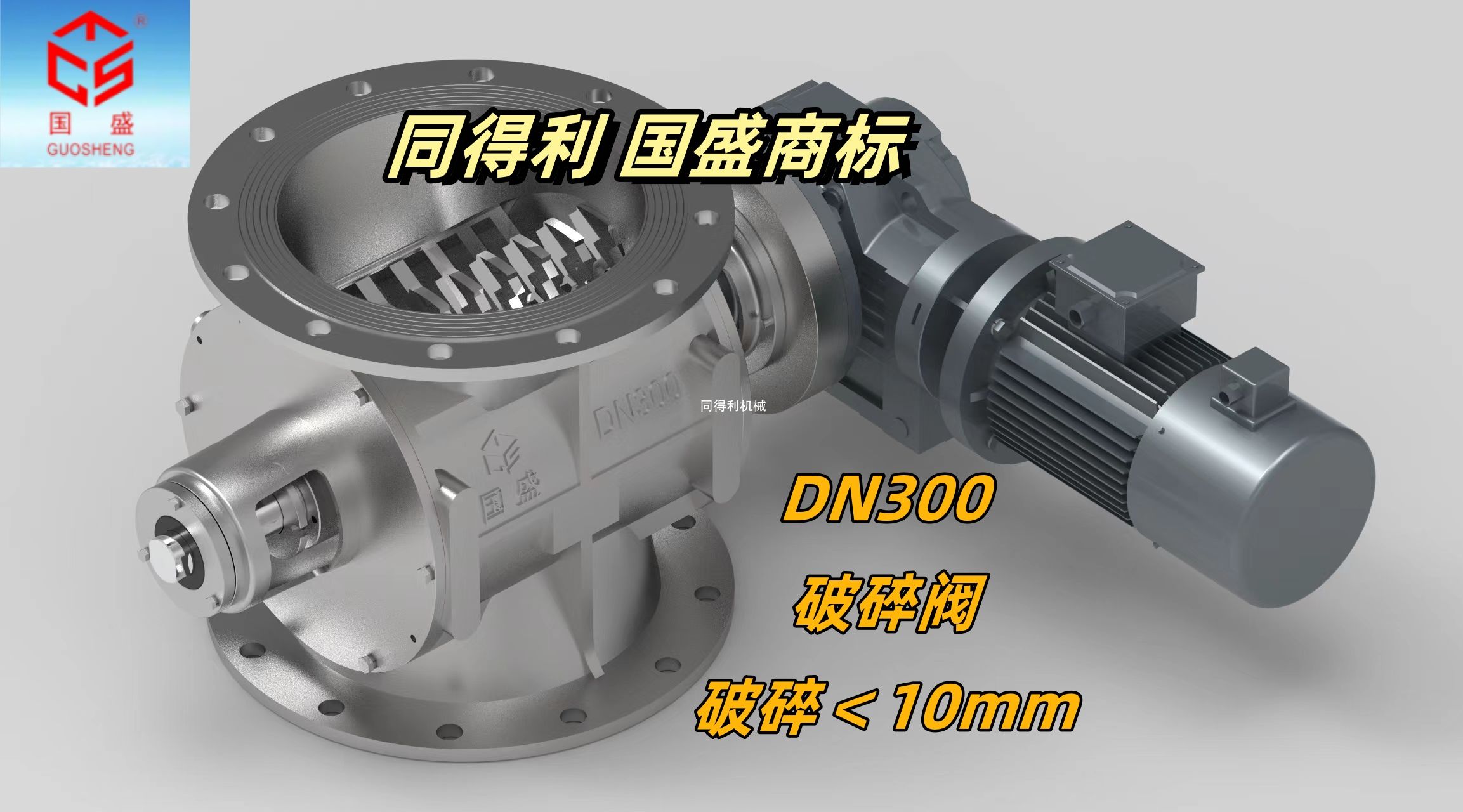

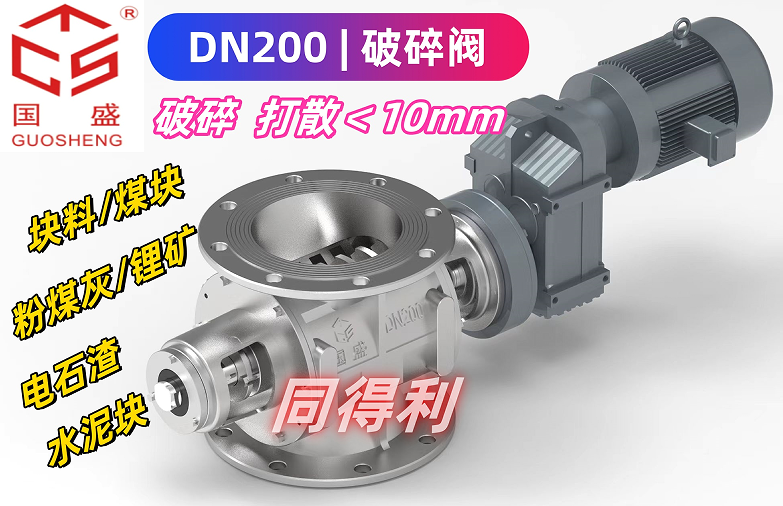

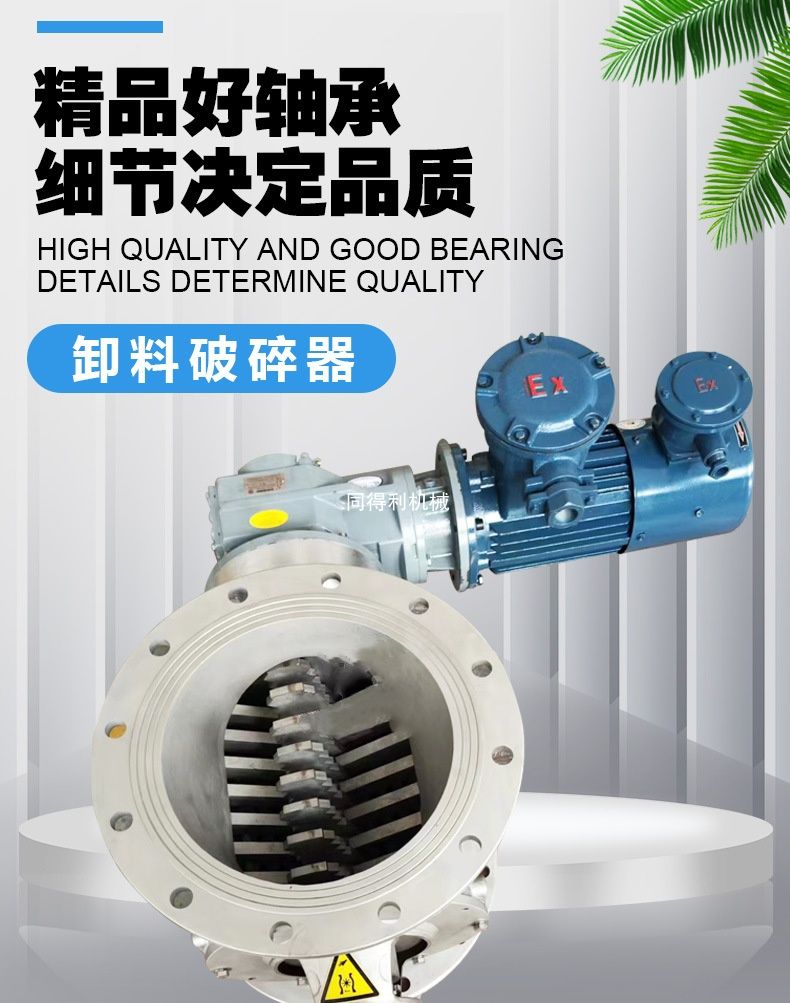

The main function of the rotary crushing valve is to crush the block materials in the material flow of the unloader. These block materials are formed by moisture in the warehouse or bin. When large blocks of material appear in the material, they can be immediately crushed to prevent them from blocking the channel of the unloading valve and improve smooth unloading. The rotor of the crushing valve is equipped with radially arranged crushing claws, which move the block materials through the grid and crush them.　　The operational safety of the block material crushing valve unloader is ensured by the motor speed detection device integrated in the electric control box. When some block materials in the material cannot be crushed and get stuck in the rotor, the speed detection device will alarm and automatically reverse, pushing away the block materials that cannot be crushed before proceeding with forward rotation. When both forward and reverse rotation are stuck, the crushing valve will automatically stop and wait for the fault to be resolved before running again. The speed detection device is an optional device, and this requirement needs to be explained when ordering the equipment.　　旋轉破碎閥主要功能是破碎卸料器物料流中的塊料，這些塊料是物料在庫內或倉中因受潮而形成，當物料中出現較大塊狀物時，可立即將其破碎，以防止這些大塊物料堵塞卸料閥門的通道，提高通暢卸料，破碎閥的轉子上安裝有放射狀布置的破碎爪，撥動塊料物料通過柵格并將其破碎?！　K料破碎閥卸料器的運轉安全性是通過在電控箱中集成的電機轉速檢測裝置來保證，當物料中的某些塊料物料無法破碎而卡住轉子時，轉速檢測裝置將報警并自動反轉，將無法破碎塊料物料推開后再進行正轉。當正轉或反轉都被卡住時，破碎閥則自動停機，等待排除故障后再運行。轉速檢測裝置為選配裝置，有此要求時需要在設備訂貨時說明。【電話/微信咨詢：陳經理18068546632】　　常見破碎物料：沫煤、鋰礦、結塊顆粒、磷酸鐵粉、電石渣燒生石灰、碳酸鈣、鋰電池正極材料碳納米管材料、硬脂酸鹽產品、凈化灰塊狀物料、炭黑結塊?！　⌒D(zhuǎn)破碎閥設計特點：　　蕞大型號的通過量可達1200m3/h，或非標定做。　　適用于各種氣化斜槽和儲庫卸料出口?！　楦哌_350度的物料溫度而設計，更高溫度可配水冷式定做?！　〉湍芎模S護簡單?！　∑扑樽蜄鸥癜迨褂酶吣湍ゲ牧稀！　〖赊D(zhuǎn)速檢測裝置(選配項)。       破碎后塊料常規直徑＜10mm，更精細可定做。       密封鎖氣，可配氣密封裝置，高精度密封鎖氣。破碎閥非標尺寸可定制?！　〔糠挚蛻粜枨螅骸　?、破碎閥DN500. PN6.介質：鋰輝石酸化熟料，破碎前≤30mm,破碎到≤10mm;含水率≤6%，物料堆密度890g/m3;介質流量37t/h;工作溫度300℃。　　2、物料：氧化鋁粉末可能結塊，需要打散一下，從烘干設備出來可能會成團-破碎閥。導熱粉體材料(球形氧化鋁、類球形氧化鋁、氮化鋁、氮化硼)、電磁屏蔽粉體材料(鎳包石墨)，以及鋰電極片涂覆及隔膜涂層材料等?！　?、化工物料：三氯化鋰，需要破碎，高密封不能進空氣，耐腐蝕，破碎至小于30mm，以前用過德國進口科倍隆的。高純鹽酸(HCl)次氯酸鈉(NaClO)合成鹽酸(HCl)食品級鹽酸，液氯(Cl?)高品質氫氧化鉀。　　4、物料：鋰電池正極材料碳納米管，料很輕粉末，現在卸料有問題，粉末飛起來不好卸料，想把料凝固成顆粒類的然后破碎卸料?！　?、物料：硬脂酸鹽產品，物料有些像爆米花的形狀，輕拋體積大，想破碎增大物料的堆密度，物料大小一般10-20cm，要求下料速度快，破碎越小越好，下料管道DN300.物料溫度高的時候會有一點粘?！　?、旋轉破碎閥：DN200.PN=1.0MPa,容積:6L處理物料:凈化灰(塊狀物料占比約5%)，配防爆電機:功率:1.5KW,防爆等級ExdIICT4減速機:SAF硬齒面減速機，轉速:180r/min，處理里:0.4m3/min，破碎后粒度:2-5片狀，殼體材質:WCB，厚度:14mm，端蓋:WCB,厚度:16mm,轉子葉片:材質不銹鋼，厚度8mm,葉片間隙:2-5mm,轉軸材質:不銹鋼，帶配對法蘭及緊固件?！　?、物料：沫煤，要求：破碎+密封?！　?、西草甲型結塊，噸包物料打散進倉電動破碎閥?！　?、物料：粉體材料，小結塊顆粒可粉料，需要卸料破碎器。　　10、物料：石灰粉，300*300.碳鋼材質?！倦娫?微信咨詢：陳經理18068546632】　　11、DN300破碎閥，轉數328r/min 破碎≤10mm，減速機泰隆RF47-3KW，電機不防爆品牌皖南，與物料接觸部分材質304.含銅量≤0.5%，輸送介質無水磷酸鐵粉體材料，物料溫度200℃，PH值1.8-2.5;破碎動刀淬火處理，齒厚8mm間隙10mm，破碎閥內部要求無毛刺銳邊，清潔干凈無殘存金屬和其他粉末，進出料口封閉?！　?2、破碎閥，破碎物料Ca0、結塊料、部分澆注料，物料溫度200℃，進料粒度：>50mm 的料預計10%，個別結塊料可達 80mm，出料粒度<8mm，處理量45t/h，Ca0 堆積密度0.7t/m3?！　?3、高溫電動破碎閥，塊狀物料水泥半成品，規格500*800.溫度600℃，密封功能要好?！　?4、化工物料：不到15mm化工產品有腐蝕性，料倉下料易結塊堵塞，嚴重影響稱重計量包裝，需要加裝一臺破碎卸料閥，DN300接口，316L材質?！　?5、物料：炭黑，結塊4-5cm，旋轉破碎閥不銹鋼，尺寸DN300.【電話/微信咨詢：陳經理18068546632】　　16、物料石塊，破碎卸料器1:每小時2噸左右 溫度:150℃。2:大料尺寸100mm,需要處理到10mm以下。3:大顆粒量約為每小時1噸。4:現場高度500mm上下一樣的法蘭接口，閥體材質:316L*10mm,動靜齒材質:316L*6mm,法蘭材質:316L*12mm,主軸材質:316L*55mm,間隙面積:約為總面積的10%。電機11KW減速比 i=19.25減速機:硬齒面K87系列(變頻防爆)?！　?7、旋轉破碎閥，物料：鹽，硝酸鈉在干燥過程中，有結塊，影響下游螺旋輸送機?！　?8、物料：抗氧劑塊料，有點結塊，挺硬的。需要破碎閥，DN500.　　19、破碎閥DN500. PN6.介質：鋰輝石酸化熟料，破碎前≤30mm;含水率≤6%,物料堆密度890g/m3;介質流量35t/h;工作溫度300℃?！　?0、爐子出來的可能存在塊狀鹽，500-600度，需要打散，同時卸料閥要降溫措施保護電機，破碎尺寸5CM以內?！倦娫?微信咨詢：陳經理18068546632】         《掃二維碼-添加 陳經理微信  咨詢破碎打散卸料閥》　　Common crushed materials: foam coal, lithium ore, agglomerated particles, iron phosphate powder, calcined quicklime from carbide slag, calcium carbonate, positive electrode material for lithium batteries, carbon nanotube material, stearate products, purified ash block materials, carbon black agglomerates.　　Partial customer requirements:　　Crushing valve DN500. PN6. Medium: spodumene acid clinker, ≤ 30mm before crushing, ≤ 10mm after crushing; Moisture content ≤ 6%, material bulk density 890g/m 3; Medium flow rate 37t/h; The working temperature is 300 ℃.　　Material: Aluminum oxide powder may clump and need to be broken up, and it may form clumps when coming out of the drying equipment - crushing valve. Thermal conductive powder materials (spherical alumina, quasi spherical alumina, aluminum nitride, boron nitride), electromagnetic shielding powder materials (nickel coated graphite), as well as lithium electrode sheet coating and diaphragm coating materials.　　Chemical material: Lithium trichloride, needs to be crushed, highly sealed and cannot enter air, corrosion-resistant, crushed to less than 30mm, previously used from Germany imported Kobelon. High purity hydrochloric acid (HCl) and sodium hypochlorite (NaClO) are used to synthesize food grade hydrochloric acid (HCl) and high-quality potassium hydroxide for liquid chlorine (Cl ?).　　Material: Carbon nanotubes, the positive electrode material of lithium batteries, are a very light powder. There is a problem with unloading now, as the powder flies and is difficult to unload. I want to solidify the material into particles and then crush them for unloading.　　Material: stearic acid salt product. The material has a shape similar to popcorn and has a large volume when lightly thrown. If you want to increase the bulk density of the material by crushing it, the material size is generally 10-20cm. The material needs to be cut quickly and the smaller the crushing, the better. The cutting pipeline is DN300. and the material will be a little sticky when the temperature is high.
