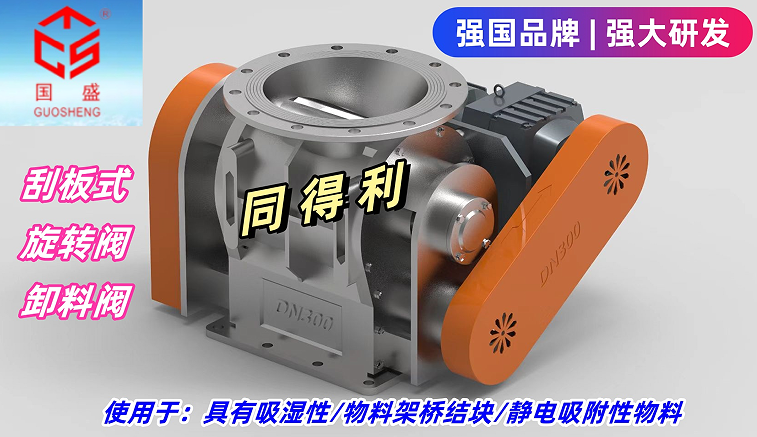

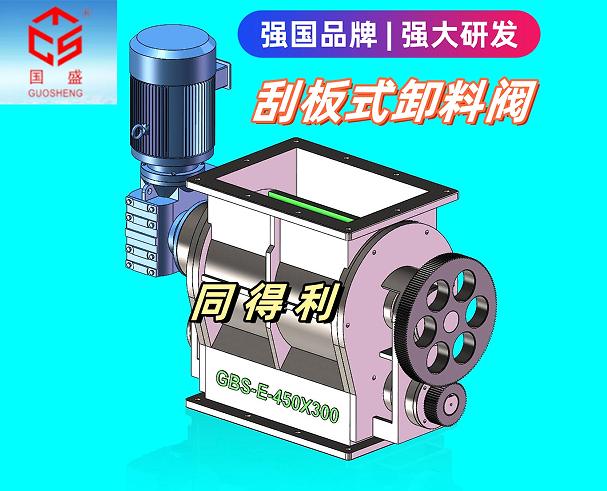

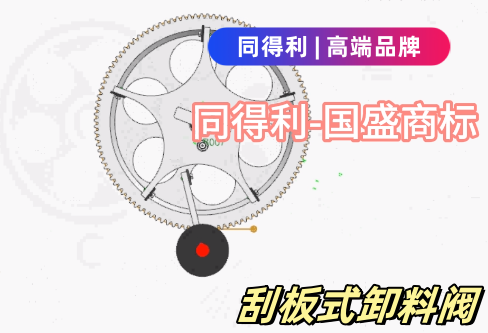

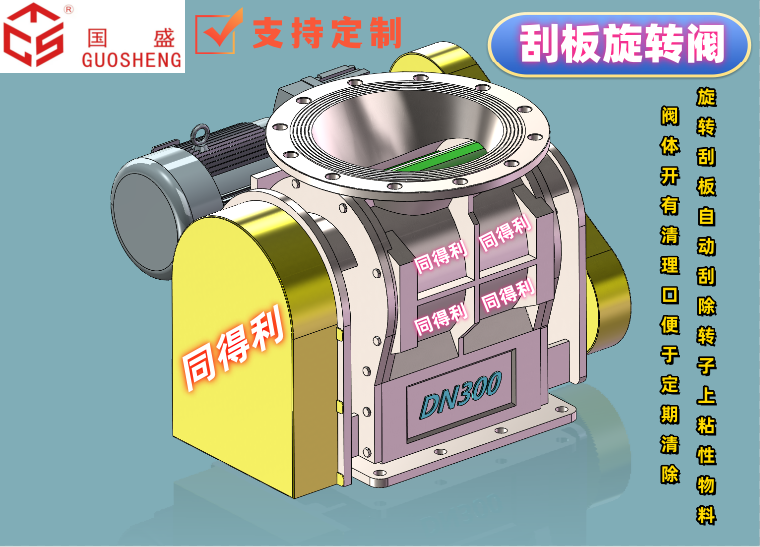

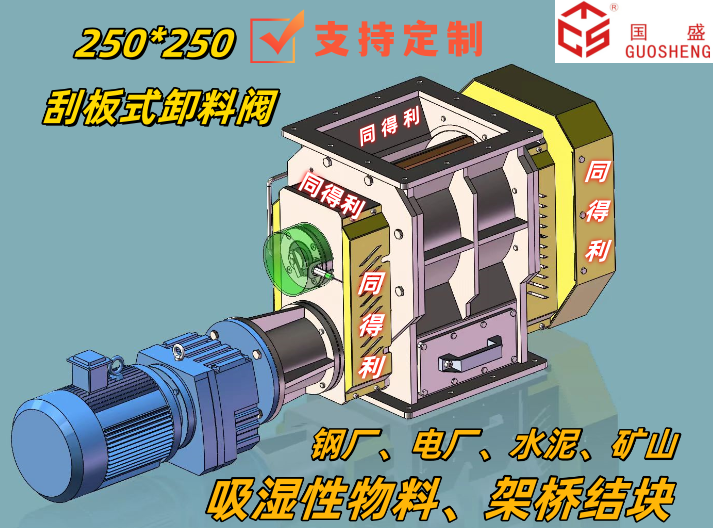

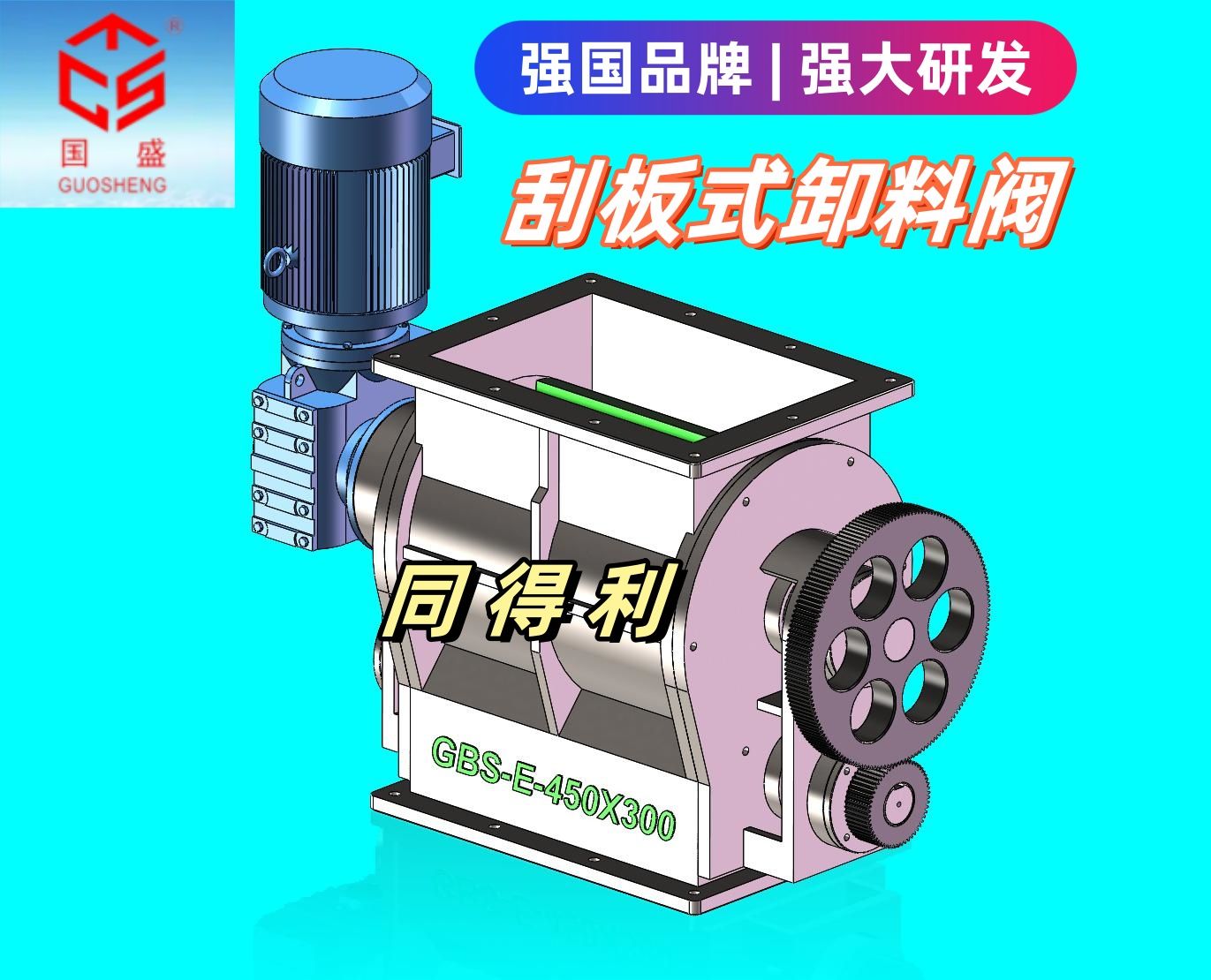

對于由于潮濕高水分黏附的粉粒料和由于靜電易附著流動性差的粉粒料，非常容易架橋或粘附填充在旋轉閥的葉片間空腔中不脫落排卸下來，將葉子空腔“糊”住，給氣力輸送和旋轉供料器操作帶來很大困難。常州同得利提供的刮板式旋轉閥/卸料閥,其特點是采用圓弧淺腔葉輪和一個能隨之轉動的刮板，旋轉的刮板能將附著在葉片上的料粒掛落清除，能解決粉粒料在葉片上粘接的問題。使定量供料和排料更加順暢，比較適用于容易導致堵塞的粉粒體，能提供150-5000mm的各種尺寸的方形和圓形口徑。【電話/微信咨詢：陳經理18068546632】　　(GBS)刮板式旋轉閥/卸料閥/星型卸料器適用于具有吸濕粘性和帶有靜電吸附性的粉粒物料、物料架橋結塊?！　￠y體下部的旋轉刮板自動將附在轉子料斗內的物料刮落。　　閥體上開有清理口，便于定期清除旋轉閥內部的物料，設備帶扭力保護器。　　提供鏈驅動、馬達直連驅動?！　〔馁|(zhì)：碳鋼、不銹鋼、陶瓷、合金系列等。按客戶需求定制。【電話/微信咨詢：陳經理18068546632】　　刮板式自清潔旋轉閥/卸料閥，包括電機和殼體，其特征在于弧形葉輪和旋轉刮板，弧形葉輪安裝在殼體內部，弧形葉輪通過電機驅動;旋轉刮板設置在弧形葉輪的下方，刮板卸料閥旋轉刮板的頂部與弧形葉輪的弧面相接觸，卸料閥旋轉刮板與弧形葉輪之間通過殼體外的齒輪傳動機構進行同步反向轉動。       常州同得利機械廠擁有多年的研發生產/定制卸料閥旋轉閥的經驗，秉承質量第 一、用戶至 上的原則。我們的旋轉閥能夠處理鋰電池、鋼廠、電廠、水泥、礦山、環保、塑料、化工、食品和醫藥等行業的各種顆粒、片狀、塊狀物料、粘料、粉料、超微粉體等?！倦娫?微信咨詢：陳經理18068546632】             《掃二維碼-添加 陳經理 微信-咨詢刮板式旋轉閥》　　For powder particles with high moisture adhesion due to humidity and poor flowability due to static electricity, it is very easy to bridge or adhere and fill the cavity between the blades of the rotary valve without falling off and being discharged, which "sticks" the leaf cavity and brings great difficulties to the operation of pneumatic conveying and rotary feeders. The scraper type rotary valve/discharge valve provided by Changzhou Tongdeli is characterized by using a curved shallow cavity impeller and a rotating scraper. The rotating scraper can remove the particles attached to the blades and solve the problem of powder particles sticking to the blades. Make quantitative feeding and discharging smoother, more suitable for powder particles that are prone to clogging, and can provide various sizes of square and circular diameters ranging from 150-5000mm.　　(GBS) Scraper type rotary valve/discharge valve/star shaped unloader is suitable for powder materials with hygroscopic viscosity and electrostatic adsorption, as well as material bridging and agglomeration.　　The rotating scraper at the bottom of the valve body automatically scrapes off the material attached to the rotor hopper.　　There is a cleaning port on the valve body for regular removal of materials inside the rotary valve, and the equipment is equipped with a torque protector.　　Provide chain drive and motor direct drive.　　Materials: carbon steel, stainless steel, ceramics, alloy series, etc. Customize according to customer needs.　　Scraper type self-cleaning rotary valve/discharge valve, comprising a motor and a housing, characterized by an arc-shaped impeller and a rotating scraper. The arc-shaped impeller is installed inside the housing and is driven by a motor; The rotating scraper is set below the arc-shaped impeller, and the top of the scraper discharge valve rotating scraper is in contact with the arc-shaped surface of the impeller. The rotating scraper of the discharge valve and the arc-shaped impeller rotate synchronously and in reverse through a gear transmission mechanism outside the housing.
